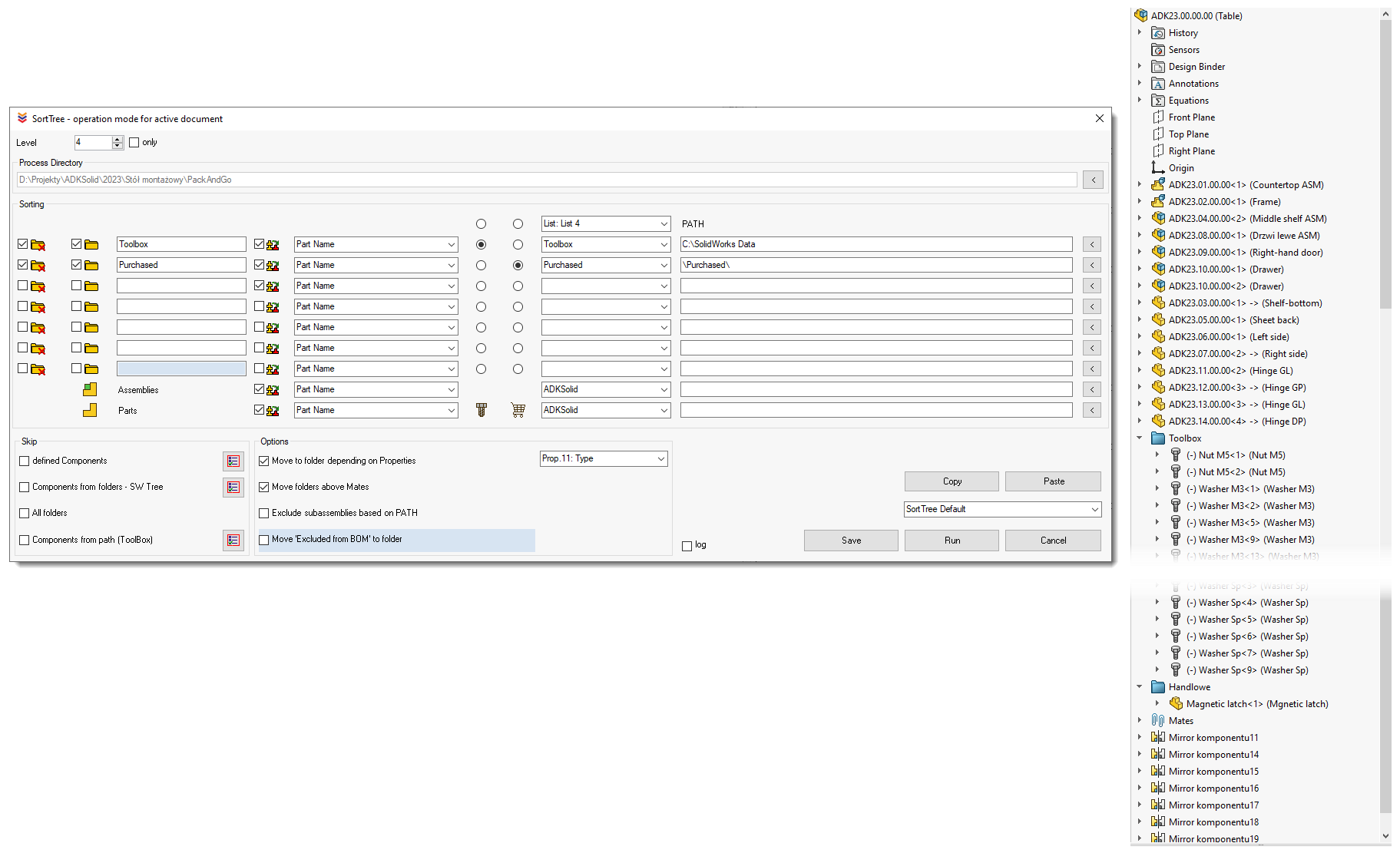

SortTree macro organizes the component structure in the SOLIDWOKRS® FeatureManager design tree.

The macro allows you to delete and create assembly model folders, move parts and assemblies to them, depending on the value of the selected file property or depending on the path to the file. Components are sorted by name or by selected file property. Folders can be placed at the top of the tree, below the origin, or at the bottom, above the constraints. You can also move all components excluded from the bill of materials to a separate folder.
